Latex vs. Silicone Pacifiers & Bottle Nipples: Full Guide
Consumer ProductsLatex is softer, silicone is tougher — that is the short version of the pacifier and bottle nipple material debate. Silicone nipples and pacifiers resist heat, odors, and allergens, last longer, and hold their shape; latex feels closer to natural rubber and slightly softer initially, but degrades faster and carries a real protein-allergy consideration. For baby brands, the choice drives safety compliance, shelf life, and consumer trust.
This guide compares the two materials on the factors parents and buyers actually care about — feel, safety, hygiene, lifespan — and what it means when you source OEM baby products.
The Two Materials Side by Side
Neither material is “bad” — they fit different babies and different brand positions. But the trade-offs are concrete, and they change with product type.
Safety and Allergy: The Decision That Matters Most
The single biggest difference between the two is latex protein allergy. Repeated exposure to natural rubber latex can sensitize both children and adults; for a product a baby holds in its mouth for hours a day, hypoallergenic status is a major argument — and many markets require or strongly prefer latex-free baby products. Silicone contains no latex proteins, which is why most modern pacifier and nipple lines are silicone.
Beyond allergies, check the safety framework for your target market — these apply regardless of material:
A silicone one-piece pacifier with tested ventilation and a food-contact-certified formulation is the lowest-risk compliance path for most brands — which is why private-label baby programs overwhelmingly spec silicone.
Lifespan and Hygiene: The Practical Parent View
Parents replace nipples and pacifiers for two reasons: wear and hygiene. Silicone’s advantage is durability under the harshest treatment parents use — boiling, steam sterilizers, dishwashers. Latex cannot take repeated high-heat sterilization without degrading, and it becomes sticky or tacky as it ages, which is also the signal to replace it.
Practical guidance that appears consistently in pediatric and brand advice:
What This Means for Brands Sourcing OEM Baby Products
If you are launching or refreshing a baby line, the material decision is also a supply-chain decision:
FAQ
Q: Is silicone or latex better for a newborn’s bottle nipples?
A: For most families, silicone is the safer default: hypoallergenic, heat-stable for sterilization, and consistent. Some babies accept latex’s softer feel more readily, but its allergy and durability trade-offs make it a niche choice — discuss with your pediatrician if you specifically want latex.
Q: How often should pacifiers be replaced?
A: Follow the brand’s guidance (commonly every 4–8 weeks with regular use) and replace immediately at the first sign of damage, stickiness, or deformation. Silicone generally lasts longer than latex in practice.
Q: Are silicone pacifiers BPA-free?
A: Silicone is not a plastic and does not contain BPA or phthalates. For formal claims, rely on the manufacturer’s material certificates and third-party test reports for the specific formulation.
Q: Can silicone pacifiers be boiled or steam sterilized?
A: Yes — food-grade, platinum-cured silicone withstands boiling and steam sterilization; that heat tolerance is one of its main advantages over latex. Always follow the brand’s care instructions.
Q: Do I need EN 1400 for EU pacifier sales and CPC for the US?
A: Yes — EN 1400 is the EU pacifier safety standard and US children’s products require CPC under CPSIA/ASTM F963. Your manufacturer should supply the relevant test documentation for your market(s).
Next steps
For most baby brands, silicone is the lower-risk, longer-lasting, more brandable choice — and compliance documentation is well established. If you are considering latex for a niche line, price in the allergy labeling and faster replacement cycle.
Planning a pacifier, nipple, or feeding line? Talk to our baby-product team about material selection, EN 1400/CPC documentation, and OEM/ODM support.
LSR in EV Battery Packs: Seals, Gaskets & Thermal Components
Automotive Silicone ProductsLiquid silicone rubber (LSR) has become a default material for electric vehicle battery systems because it solves the three problems a battery pack lives with every day: temperature extremes, vibration and humidity ingress, and thermal management. From housing gaskets that keep a pack at IP67/IP68 sealing levels to thermally conductive pads between cells and cooling plates, LSR and high-consistency silicone rubber (HCR) appear throughout modern EV architectures.
This article explains where silicone is used inside an EV battery pack, which material grades matter, and what to verify when sourcing automotive silicone parts from a contract manufacturer.
Where Silicone Appears in an EV Battery System
Battery packs are demanding environments: they must seal against water and dust for years, survive temperature cycling, resist vibration, and manage heat — often inside the same component family. Silicone’s typical application points:
Silicone is rarely the cheapest material in the bill of materials — it wins on lifetime behavior: it keeps sealing and insulating long after cheaper elastomers have hardened or cracked.
Why Silicone Wins in Battery Environments
Four material properties drive the choice over general-purpose rubber (EPDM, NBR) or TPE:
Flame resistance is the fourth dimension buyers should verify per grade: many automotive silicone formulations are rated flame-retardant (e.g., UL 94 V-0) and some ceramifying grades form a ceramic-like char under fire to help contain thermal runaway. Always request the specific grade’s datasheet for temperature, compression set, dielectric strength, thermal conductivity, and flame rating — these numbers vary widely between formulations.
LSR vs. HCR for Battery Components: How to Choose
Both material families are silicones — the difference is form and process:
In practice, battery programs often use both: injection-molded LSR for intricate seal and connector geometries, and HCR gaskets where the part is a large, relatively simple perimeter seal. A manufacturer with both LSR injection and HCR compression/transfer capability lets your engineers pick the process per part rather than forcing one process on the whole pack.
What to Verify When Sourcing Automotive Silicone Parts
Automotive quality expectations (PPAP-style documentation, IATF or equivalent customer requirements, change control) are stricter than consumer goods. Before awarding a battery-component program, verify that the manufacturer can supply:
NEWTOP SILICONE is a China-based custom silicone manufacturer producing for industrial and automotive programs, with LSR injection molding, HCR compression and transfer molding, overmolding/multi-shot capability, and an in-house mold shop (CNC + EDM). Our ISO 9001 quality system covers custom silicone part production; tell us your customer’s documentation requirements and we will confirm what we can support for your program.
FAQ
Q: Can silicone battery gaskets really last the life of an EV?
A: Silicone is specified in automotive sealing precisely for long-term aging resistance — low compression set and stability across temperature cycling are its core advantages over general-purpose rubber. Validate the specific grade’s datasheet against your 10–15 year design life.
Q: What thermal conductivity can silicone thermal pads achieve?
A: Thermally conductive silicone grades are available across a wide range depending on filler loading — from around 1 W/m·K for general thermal pads to significantly higher for specialty gap fillers. Select the grade against your cooling design and confirm values on the actual material datasheet.
Q: Does an EV battery program need IATF 16949 certification?
A: Many automotive customers require IATF 16949 or their own supplier quality system; some accept ISO 9001 plus customer-specific PPAP and documentation requirements. Ask your customer which system they require, and verify the manufacturer’s certificate scope before quoting.
Q: Can silicone be overmolded directly onto aluminum battery housings?
A: Silicone bonds chemically to certain engineering plastics, but adhesion to metal (aluminum, steel) usually requires surface treatment such as primers or plasma, plus mechanical design features. Confirm the manufacturer’s metal-overmolding process with adhesion testing before tooling.
Next steps
Specify battery silicone parts by grade data, not material name: document the temperature window, compression set target, dielectric or thermal requirements, and flame rating you need, and ask manufacturers to propose the specific LSR/HCR grade. Then qualify the factory on process capability and documentation discipline, not just price.
Designing gaskets, seals, or thermal components for an EV program? Send us your drawings or requirements — our engineering team will confirm materials, tooling, and documentation support for your project.
GPSR Compliance Guide for Silicone Products in the EU
Silicone rubber industry knowledgeThe EU General Product Safety Regulation — GPSR, Regulation (EU) 2023/988 — has applied to consumer products across the EU since 13 December 2024, replacing the old General Product Safety Directive. If you sell silicone feeding products, pet items, kitchenware, or any other consumer silicone product in the EU — online or in stores — GPSR adds new obligations on top of material standards such as LFGB, FDA 21 CFR 177.2600, and EN 71. This guide explains what changed and what a silicone manufacturer should provide to help you comply.
NEWTOP SILICONE is a custom silicone product manufacturer based in China with 10+ years of export experience to the European market. We make baby, kitchen, pet, personal-care, and medical silicone products under OEM/ODM programs and hold ISO 9001, ISO 13485, FDA, LFGB, CE, and TÜV-certified testing documentation. This article is general guidance, not legal advice — verify your specific obligations with a compliance adviser for the markets you ship to.
What Is GPSR and Why Does It Matter for Silicone Products?
GPSR is the EU’s horizontal safety law for non-food consumer products. Unlike CE-marking directives (toys, electronics) or food-contact regulations (LFGB, EU 1935/2004), GPSR applies across the board — including products that have no dedicated EU directive. It requires that every consumer product placed on the EU market is safe, traceable, and backed by an accountable economic operator.
Key facts:
For a silicone supplier, the practical meaning: your product still needs the right material tests (LFGB, FDA, EN 71 for toys) — but now the chain of accountability must also be documented: who made it, who is responsible inside the EU, and how it can be traced per batch.
The Five Obligations That Most Affect Silicone Brands
1. An EU-based “responsible economic operator”
If the manufacturer is not established in the EU, the product can only be placed on the EU market if an economic operator based in the EU is responsible for it — typically the importer, an authorized representative, or a fulfillment service provider. That operator’s name, registered trade name, and contact address must appear on the product, its packaging, or an accompanying document.
2. Product traceability information
Every product must be identifiable by type, batch, or serial number, together with the manufacturer’s name and address. For silicone goods — teethers, slow feeders, baking mats — batch codes are the normal mechanism. This is what makes a recall or a market-surveillance check manageable.
3. Technical documentation
Manufacturers must keep technical documentation describing the product and its safety assessment and make it available to market surveillance authorities on request. For silicone this typically means: material certificates and test reports (LFGB, FDA, REACH, EN 71 where applicable), MSDS, and a short risk assessment (choking hazards, migration limits, temperature limits, intended users).
4. Online listings must show safety and identity information
GPSR puts specific duties on sellers offering products online (Article 19). Before a product is offered for sale on a marketplace, the listing must display:
This matters for Amazon EU sellers in particular — incomplete listings can be de-listed even when the physical product is compliant.
5. Incident reporting and corrective actions
Economic operators must notify market surveillance authorities through the EU Safety Business Gateway when a product causes a serious accident or safety issue, and cooperate on recalls. Consumers must also be informed of corrective actions (Safety Gate). This is why batch traceability (point 2) is not paperwork — it is the mechanism that lets a small brand contain a problem fast.
GPSR vs. Food-Contact and Toy Rules: What Still Applies
GPSR sits on top of existing sector rules. For silicone products, brands commonly need three layers:
Many sellers assume “we have FDA/LFGB reports, so we are fine in the EU.” That is only half true: LFGB-type migration testing proves the material is food-safe; it does not satisfy the operator, traceability, and documentation duties that GPSR adds.
What a Silicone Manufacturer Should Provide to Support Your GPSR File
When you source custom silicone products for the EU market, your manufacturer should be able to supply, at minimum:
NEWTOP SILICONE supports OEM/ODM customers with documented material compliance and batch-level QC records across baby, kitchen, and pet silicone programs. Our export process includes inspection reports and test documentation per shipment — ask us for the exact document package for your product category.
FAQ
Q: Does GPSR apply to products I already sold before December 2024?
A: Products already on the EU market before 13 December 2024 can generally continue to be sold under the old regime, but new stock placed on the market after that date must comply. Check with your compliance adviser for your specific stock situation.
Q: I sell through Amazon EU — do I need my own responsible person?
A: For most direct-to-consumer online sales, yes: GPSR requires an EU-based responsible economic operator for products sold online, and marketplace listings must show the operator’s identity. If you have an EU importer, that importer can take the role; otherwise you need an authorized representative or fulfillment provider arrangement.
Q: Is GPSR the same as CE marking?
A: No. CE marking comes from specific product directives (e.g., toys under EN 71, electronics under the EMC/LVD directives). GPSR is a horizontal safety regulation that applies in addition to those rules. Many silicone products need no CE mark at all but still fall under GPSR.
Q: Do baby and pet silicone products need different compliance packages?
A: Yes. Baby feeding items need food-contact testing (LFGB/FDA) and, if they are toys or teethers, EN 71 / CPC testing plus choking-hazard review. Pet feeding products need food-contact testing; pet toys have their own durability and safety considerations. GPSR applies to all of them.
Next steps
GPSR is a documentation and accountability exercise, not a redesign of your product. Start by listing your EU SKUs and confirming (1) who your EU responsible operator is, (2) whether your labels carry batch codes and the operator’s identity, and (3) whether your online listings show the required information. Then collect the test reports and MSDS for each product from your manufacturer.
Planning an EU launch or updating an existing line? Request a quote or talk to our export team — we can walk you through the documentation package we provide per shipment.
Private Label Silicone Products: A Complete OEM Guide for Brands
Consumer ProductsPrivate label silicone products are manufactured by an OEM factory under your brand name, then sold as your own product line. For brands, the appeal is simple: silicone products across baby, kitchen, pet and personal-care categories are durable, food-safe and highly customizable — and a good OEM partner takes you from idea to shelf in roughly 3–4 months. This guide covers the full process, what it costs, the certifications your target market requires, and the mistakes that sink private label launches.
TL;DR — the private label journey in one glance
What Are Private Label Silicone Products?
Private label means a factory manufactures the product, and you — the brand owner — sell it under your own brand name and packaging. It is the same product most brands sell: the factory does not own the brand.
Three terms are often used interchangeably, with slight differences:
NEWTOP SILICONE, a custom silicone OEM/ODM manufacturer in China with 10+ years of experience, works across all three models — from brands that arrive with CAD files to startups that arrive with only an idea.
Why Private Label Silicone Is an Attractive Category
The 7-Step Private Label Process
Step 1: Concept & Product Specification
Define the product before contacting factories:
Write this into a one-page brief. It will guide every subsequent decision — especially material grade and certifications.
Step 2: Design & DFM (Design for Manufacturing)
If you have CAD files, the factory reviews them for manufacturability — wall thickness, draft angles, parting lines, undercuts. If you only have an idea, a good OEM partner designs it with you. Common DFM issues in silicone: walls too thin (tearing), too thick (cost, long cure time), and undercuts that prevent demolding.
Milestone: a design both you and the factory agree is mold-ready.
Step 3: Tooling & Prototype
The production mold is the biggest upfront investment. Key questions to settle before paying:
At NEWTOP, silicone shrinkage (LSR 2.5–4.0%, HCR 1.5–3.0%) is compensated in the mold design, and samples are measured before production approval.
Step 4: Certification & Compliance Testing
Certification requirements depend on your market and product category:
Insist on finished-part test reports, not raw-material certificates. The part you sell must pass, and finished-part testing catches issues (residues, migration, odor) that raw-material data misses.
Step 5: Mass Production & Quality Control
Production should be documented and traceable:
A factory with an ISO 8 cleanroom and ISO 13485 certification (medical-grade capability) maintains a higher baseline of cleanliness and documentation — relevant if you may extend into baby or medical lines later.
Step 6: Branding, Logo & Packaging
Silicone offers four main logo methods:
Packaging (boxes, hang tags, barcodes, poly bags) is part of the OEM scope. Decide retail-ready vs e-commerce packaging early — it affects cost and MOQ.
Step 7: Shipping & After-Sales
Most China-based factories quote FOB. Plan for: mold/unit cost breakdown, lead time, freight, and import duties for your country. After-sales matters more than you expect — a partner that tracks every batch makes quality disputes simple to resolve.
What Does Private Label Silicone Cost?
Costs split into five buckets:
As a rule of thumb, a private label silicone launch runs roughly 3–4 months from brief to first shipment: ~2–3 weeks design/DFM, ~3–4 weeks tooling and samples, ~2–4 weeks certification, then production and shipping.
Protecting Your Brand and IP
Three layers of protection, all settled in writing before production:
Skip these and you risk exactly what every cautionary story warns about: a competitor selling your product at a lower price from the same factory.
7 Mistakes That Sink Private Label Launches
FAQ
Q: What is the difference between OEM and private label?
A: They are the same model from the buyer’s perspective: a factory produces your product under your brand. OEM emphasizes producing to your design; private label emphasizes the brand ownership on the shelf.
Q: What is the minimum order quantity (MOQ) for private label silicone?
A: MOQ depends on the molding process and product size — compression molding typically supports smaller quantities (hundreds to low thousands), LSR injection favors larger runs. Ask for process-specific MOQs, not a single number.
Q: How long does it take to launch a private label silicone product?
A: Typically 3–4 months from product brief to first shipment, including design, tooling, certification and production. Custom designs with new molds take longer than white-label products built on existing tooling.
Q: Do I need FDA or LFGB certification?
A: If you sell food-contact products in the US, FDA compliance (21 CFR 177.2600) is expected; for the EU, LFGB is the recognized standard. Children’s products add CPC/CPSIA (US) and EN71 (EU). Your factory should provide finished-part test reports covering your target markets.
Q: Can I use my own logo on private label silicone products?
A: Yes — mold embossing, pad printing, epoxy and laser engraving are the four standard methods. Mold-embossed logos are permanent and recommended for most silicone products.
Q: How do I protect my design from being copied?
A: Sign an NDA, put mold ownership and exclusivity in the contract, and register trademarks/design patents in your sales markets. On Amazon, Brand Registry adds another layer of protection.
Conclusion
Private label silicone is one of the most accessible ways to build a durable-goods brand: the products are premium, food-safe and highly customizable, and the OEM process is well established. Success comes down to four decisions: choosing a real factory (not a trading company), settling mold ownership and IP protection in writing, certifying finished parts for your target markets, and planning packaging and MOQ before production starts.
If you are ready to evaluate a partner, talk to engineers who mold silicone daily. NEWTOP SILICONE — a 10-year custom silicone OEM/ODM manufacturer with in-house tooling (no markup on molds), ISO 8 cleanroom production, ISO 13485 and a dedicated materials lab — offers end-to-end service from idea or CAD to branded, shipped product, with NDA protection and 24/7 one-on-one support.
Silicone vs TPE: How to Choose for Baby, Kitchen & Pet Products
Consumer ProductsFor food-contact products that face heat — baby feeding items, kitchenware and pet bowls — silicone is usually the safer, longer-lasting choice: it withstands repeated sterilizing temperatures, holds food-grade certifications across more markets, and resists aging. TPE wins where cost, color flexibility or overmolding complexity matters more than heat. Choose based on four factors: temperature exposure, certification requirements, product lifetime, and unit cost.
TL;DR — Silicone vs TPE at a glance
What Are Silicone and TPE?
Silicone rubber is a thermoset polymer — a silicon-oxygen backbone with organic side groups. Once cured, it cannot be melted and remolded. It is supplied as solid rubber (HCR, high-consistency rubber) or as a two-part liquid (LSR, liquid silicone rubber) that cures in the mold in 25–50 seconds. For food and baby products, silicone is almost always platinum-cured, which leaves minimal residues and low odor. In our factory (NEWTOP SILICONE, a custom silicone OEM/ODM manufacturer in China), we mold silicone across Shore A hardnesses from 10 to 80, and post-cure food-contact parts to remove volatiles and stabilize the material.
TPE (thermoplastic elastomer) is a family of polymers that behave like rubber at room temperature but melt when heated — the same plastic family includes SEBS, TPU and TPV. Because it is thermoplastic, TPE can be injection-molded on standard plastic machines, in faster cycles and with more easily recycled scrap. Its heat resistance is the limiting factor: most TPE grades are rated for continuous use well below 135 °C, and repeated exposure to boiling water or steam accelerates aging.
The core difference in one line: silicone is a cured rubber that stands up to heat and chemicals for years; TPE is a melt-processable rubber-like plastic that costs less but tolerates less.
The 4-Factor Decision Framework
1. Heat & Sanitizing Exposure
This is the single biggest differentiator.
Rule of thumb: if the product will be regularly boiled, steamed, microwaved or baked, choose silicone. If it will only see room temperature or gentle washing, TPE remains viable.
2. Food-Contact Regulations & Certifications
For baby, kitchen and pet products sold in the US or EU, compliance is not optional — and this is where the two materials diverge most.
If your target market is the US or the EU or both, silicone’s regulatory footprint is simpler and more transferable. A product certified to FDA + LFGB + CPC + EN71 covers essentially all Western food-contact and children’s-product requirements.
3. Lifespan & Aging
Silicone’s chemical backbone resists oxidation, UV and hydrolysis, so it keeps its elasticity and appearance for years. TPE relies on physical crosslinks and plasticizers, which migrate or break down — expect gradual hardening, softening or yellowing, especially with heat, oils or sun exposure. For a product meant to be used daily for 2–3 years (a feeding bowl, a baking mat, a slow feeder), silicone’s longer life usually justifies its higher unit cost.
4. Cost & Tooling
TPE is cheaper per kilogram and molds faster on standard plastic machines, which lowers both tooling and unit costs at scale. Silicone tooling is more precise, but molds last longer, and — at NEWTOP — we build molds in-house with no markup, which removes the biggest upfront cost difference for custom products. At small-to-medium volumes, the total project cost gap between silicone and TPE is much smaller than raw-material prices suggest.
Silicone vs TPE for Baby Products
Verdict: silicone, for anything that touches a baby’s mouth or food.
Buyer tip: for mouth-contact items, ask your supplier for the finished-part test report (not a raw-material report) covering FDA 21 CFR 177.2600 and EN71-3 heavy-metal migration.
Silicone vs TPE for Kitchen Products
Verdict: silicone for anything that goes in the oven, microwave or dishwasher; TPE only for room-temperature accessories.
Silicone vs TPE for Pet Products
Verdict: silicone for food bowls, slow feeders and chew toys; TPE acceptable for low-cost accessories.
When TPE Is Actually the Better Choice
Being honest about TPE’s strengths makes this guide more useful — and more credible:
How to Verify Food-Grade Claims Before You Source
Whether you choose silicone or TPE, verify these five things with your supplier:
FAQ
Q: Is TPE food safe?
A: Some TPE grades are food-contact approved, but compliance is base-polymer-specific and often fails EU sensory testing. Silicone regulated under FDA 21 CFR 177.2600 and LFGB has a broader, simpler compliance path for food-contact products.
Q: Can TPE go in the dishwasher or microwave?
A: Mild dishwasher cycles are borderline for TPE (it fades and ages faster); microwave and oven use are not recommended. Silicone is safe in dishwasher, microwave and oven up to its rated temperature.
Q: Is silicone more expensive than TPE?
A: Silicone costs more per kilogram, but the gap narrows when you count tooling life, certification coverage and product lifespan. For heat-exposed food products, silicone’s total cost of ownership is often lower. [CONFIRM: factory-specific price comparison to verify before publishing]
Q: Which is better for baby teethers — silicone or TPE?
A: Silicone. Teethers are boiled or sterilized repeatedly and chewed hard; silicone survives both without aging, odor or sharp edges, and carries CPC/EN71/FDA compliance.
Q: Can TPE be used for pet bowls?
A: It can, for low-cost lines, but silicone is the better default: dishwasher-safe, tear-resistant, longer-lasting and compliant with food-contact standards — important since pets lick and chew bowls daily.
Conclusion
Choose silicone for baby feeding items, oven/dishwasher kitchenware, and pet food bowls — the products that face heat, sterilization, chewing and daily washing. Choose TPE for room-temperature, non-food accessories where cost, recyclability or fast multi-material molding dominates.
If you are developing a custom silicone product, talk to engineers who mold both materials daily. At NEWTOP SILICONE, a 10-year custom silicone OEM/ODM manufacturer with ISO 13485, ISO 8 cleanroom production and an in-house materials lab, we can help you confirm the right material, hardness and certification path for your market — with in-house molds at no markup.
LSR Injection Molding: Process, Design, Tolerances & Cost Guide
Silicone rubber industry knowledgeLiquid Silicone Rubber (LSR) injection molding is a manufacturing process used to produce flexible silicone components with complex geometries, consistent repeatability, and high levels of automation.
In a typical process, two liquid silicone components are accurately metered, mixed, injected into a heated mold, cured, and then demolded. Compared with many conventional rubber molding processes, LSR injection molding is particularly well suited to automated production, precision components, multi-cavity tooling, and applications requiring consistent material and dimensional performance. Dow describes LSR as a two-part silicone material designed for rapid heat curing, while Shin-Etsu notes that LSR systems can automate the process from material mixing through molding.
However, successful LSR molding depends on much more than selecting an injection molding machine.
Part geometry, wall thickness, parting lines, gating, venting, shrinkage, tolerances, material hardness, mold construction, cavity count, and production volume all affect manufacturability and final cost.
This guide explains how LSR injection molding works, how to design parts for the process, how tolerances and shrinkage should be managed, and what determines the cost of an LSR project.
Key Takeaways
What Is LSR Injection Molding?
Liquid Silicone Rubber, or LSR, is a flowable silicone elastomer formulated for injection molding.
Many commercial LSR systems consist of two components—commonly referred to as Part A and Part B—which are metered and mixed before entering the injection unit. After the material enters the heated mold cavity, the silicone cures into an elastic solid component.
Unlike thermoplastic injection molding, where plastic is heated until it melts and then cooled inside the mold, LSR is a thermosetting elastomer.
The basic thermal strategy is therefore different:
This processing characteristic enables fast curing and automated manufacturing for suitable parts. Shin-Etsu specifically identifies fast curing, low injection pressure, high-precision molding, and automation as key characteristics of liquid silicone injection systems.
How Does LSR Injection Molding Work?
A typical LSR injection molding process can be divided into several stages.
1. Material Preparation
LSR is supplied as separate reactive components.
The material formulation is selected according to requirements such as:
LSR is not one standardized material.
For example, Shin-Etsu’s LSR portfolio includes materials ranging across multiple hardness levels and formulations for food contact, automotive applications, high tear strength, self-adhesion and other requirements.
Material selection should therefore begin with the product’s working conditions rather than hardness alone.
2. Metering and Mixing
The two material components are transferred from their containers using a metering system.
The equipment controls the proportion of the components before combining them in a mixing system.
Color pigment or other approved additives may also be introduced during this stage when required.
Accurate metering is important because inconsistent mixing can affect cure behavior and final material properties.
The mixed LSR then moves toward the injection unit.
3. Injection Into the Mold
The material is injected into a closed, heated mold.
Because uncured LSR can flow into fine features, it is suitable for many small or geometrically detailed components.
This flowability is useful—but it also creates one of the major engineering challenges of LSR molding:
flash control.
If mold shutoffs, parting surfaces, vents, or process parameters are poorly controlled, low-viscosity silicone may enter extremely small gaps.
This means precision mold manufacturing is particularly important in LSR production.
4. Curing
Once the silicone reaches the heated cavity, the curing reaction accelerates and the material changes from a flowable liquid into a crosslinked elastomer.
Cure time depends on variables including:
Fast-curing LSR grades can support short production cycles, although there is no universal cycle time for every LSR component. Dow and Shin-Etsu both offer LSR grades specifically designed around rapid heat curing and improved processing efficiency.
5. Demolding
After sufficient curing, the mold opens and the silicone component is removed.
Silicone’s flexibility can make it possible to demold geometries that would be difficult with rigid thermoplastics.
This creates greater freedom for:
However, flexibility should not be interpreted as unlimited design freedom.
Excessive undercuts can still:
A DFM review should evaluate both whether the part can physically be removed and whether it can be removed consistently during mass production.
6. Post-Molding Operations
Depending on the product and material system, molded LSR components may require additional operations such as:
Not every LSR formulation requires post-curing.
Some modern LSR formulations are specifically designed for applications where post-cure can be eliminated or reduced. Shin-Etsu, for example, provides LSR systems designed without a required post-curing stage for selected applications.
Whether post-curing is required should therefore be determined by the selected material, application, regulatory requirements, and validated manufacturing process.
LSR Injection Molding Process at a Glance
LSR Design Guidelines
Good LSR manufacturing starts at the CAD stage.
Many problems attributed to molding are actually created during product design.
Common examples include:
The goal of DFM is to identify these issues before mold steel is cut.
1. Keep Wall Thickness as Uniform as Practical
Uniform wall thickness generally improves mold filling and curing consistency.
Large transitions from thin to thick silicone sections can create:
This does not mean every wall must have exactly the same thickness.
Functional products often require reinforcement or thicker sections.
Instead, transitions should be deliberate and gradual where possible.
2. Very Thick Silicone Sections Can Increase Cycle Time
A thicker component contains more material and generally requires more time for heat to reach and cure the entire section.
As a result, unnecessary thickness can increase:
Before increasing wall thickness for “strength,” engineers should determine whether geometry, ribs, material hardness, or higher-tear-strength silicone could achieve the required performance more efficiently.
3. Thin Features Require Flow Analysis
LSR’s flow characteristics allow it to fill relatively fine features.
However, very thin sections can still be affected by:
There is therefore no universal minimum wall thickness applicable to every LSR product.
A short thin membrane close to the gate may be completely different from a long thin flow path at the opposite side of a cavity.
This is a typical area where mold-flow and DFM experience matter more than a generic design table.
4. Carefully Select the Parting Line
The parting line is where the mold halves meet.
Its position affects:
For cosmetic products, the parting line should normally be positioned away from prominent surfaces when possible.
For sealing components, it should be positioned carefully so that flash or mismatch does not interfere with the sealing surface.
A seemingly small change in part orientation can sometimes substantially improve manufacturability.
5. Design Flash-Sensitive Areas Carefully
One of LSR’s advantages is its ability to flow into very small spaces.
The same property makes flash prevention demanding.
Potential flash-sensitive areas include:
For precision seals and membranes, flash limits should be specified according to function rather than applying an unrealistic cosmetic requirement to the entire product.
6. Draft Angles Work Differently From Rigid Plastics
Silicone’s flexibility means LSR parts can often be removed from molds with less draft than rigid injection-molded thermoplastics.
However, draft still influences:
A design that can theoretically be removed manually may still be unsuitable for automated high-volume production.
Therefore, draft should be determined together with geometry, depth, texture, hardness, and demolding strategy.
7. Undercuts Are Possible—but Not Free
Flexible silicone can deform during removal, allowing certain undercuts to be molded without side actions.
This can simplify mold construction compared with rigid plastic components.
But undercuts increase demolding strain.
Important factors include:
For mass production, the important question is not:
It is:
8. Consider Ribs and Reinforcement Strategically
Silicone ribs may be used for:
Very tall, thin ribs may be more difficult to fill, demold, and maintain dimensionally.
Whenever a rib is critical to sealing or assembly, its tolerance and moldability should be evaluated separately from non-critical cosmetic features.
LSR Gate Design
The gate is the point where liquid silicone enters the mold cavity.
Gate design influences:
Possible gating strategies vary according to mold and product geometry.
The gate should normally be placed where material can fill the cavity consistently while minimizing:
For multi-cavity tooling, balanced filling becomes especially important.
Venting in LSR Mold Design
Air inside the mold cavity must escape as LSR enters.
Poor venting may lead to:
However, because uncured LSR flows readily, vents must also be engineered carefully to prevent excessive material escape and flash.
This makes vent design one of the precision aspects of LSR tooling.
Cold Runner Systems
High-volume LSR tooling often uses cold-runner technology.
The purpose is to keep material in the runner system from curing before it reaches the heated mold cavity.
This can:
Shin-Etsu identifies runnerless molding as one of the important capabilities of modern LSR systems.
However, cold-runner tooling is more technically complex than simple conventional tooling.
The additional tooling investment needs to be evaluated against expected production volume.
LSR Shrinkage: Why It Matters
Silicone does not leave the mold at exactly the cavity dimensions.
Dimensional change occurs as the material cures and cools.
This is generally referred to as molding shrinkage.
One common mistake is to specify one shrinkage percentage for all LSR products.
That approach is unreliable.
Shrinkage depends on variables such as:
Actual supplier data demonstrates this variation. Shin-Etsu’s published LSR data shows that linear shrinkage can differ among formulations rather than following one universal value.
Therefore:
How Is LSR Shrinkage Controlled?
Manufacturers normally manage dimensional shrinkage through a combination of:
Material Data
The selected LSR grade provides an initial expected shrinkage behavior.
Tooling Compensation
Critical mold dimensions may be adjusted according to the material and manufacturing experience.
Process Control
Variables such as cure conditions and molding parameters need to remain consistent.
Sampling
Prototype or T1 samples are measured and compared with drawings.
Tool Adjustment
Where necessary, tooling is corrected before mass-production approval.
For precision projects, this process should be considered during tooling planning rather than waiting until finished molds produce out-of-tolerance components.
LSR Injection Molding Tolerances
LSR can produce precision elastomeric components, but silicone should not automatically be assigned the same tolerances used for metal or rigid plastic.
Elastomers behave differently because dimensions can be influenced by:
ISO 3302-1:2014 provides dimensional tolerance classes for molded, extruded and calendared solid rubber products and remains current following its 2024 confirmation.
Geometrical characteristics such as flatness, parallelism, perpendicularity, coaxiality and position are addressed separately by ISO 3302-2:2022.
These standards are useful references, but actual product tolerances should still be connected to functional requirements.
Fixed Dimensions vs Mold-Closure Dimensions
Not all molded dimensions behave in the same way.
A dimension formed completely within one mold component may be easier to control than a feature affected by the relationship between two mold halves.
For example:
may have different manufacturing behavior.
This is why specifying the same tolerance across every drawing dimension is usually poor elastomer design practice.
How Should Engineers Specify LSR Tolerances?
Divide dimensions into three categories.
Critical Dimensions
Features directly affecting:
These deserve tighter control and defined inspection methods.
Important Dimensions
Features affecting product performance but allowing moderate variation.
Non-Critical Dimensions
Cosmetic or general dimensions where small variations do not affect function.
This approach concentrates manufacturing and inspection resources where they create actual value.
Why Over-Tolerancing Increases Cost
If every dimension is assigned an unnecessarily tight tolerance, the manufacturer may need:
That increases both tooling and recurring production costs.
The correct goal is therefore not:
It is:
LSR Hardness and Material Selection
LSR is available in a broad range of hardness and performance grades.
Hardness affects properties such as:
But Shore hardness alone does not fully describe an LSR.
Two materials with similar hardness may have different:
For example, current commercial LSR portfolios include specialized grades for electrical connector seals, food-contact products, automotive parts and healthcare applications.
Material selection should therefore begin with the actual working environment.
LSR Overmolding and Insert Molding
LSR can also be molded around rigid components.
Common substrates include:
This technique is frequently referred to as:
LSR overmolding or insert molding.
Potential advantages include:
Some LSR formulations are specifically designed to adhere to selected engineering plastics during molding. Shin-Etsu, for example, lists self-adhesive LSR systems developed for substrates including PC, PBT and polyamide materials.
However, successful overmolding requires evaluation of:
Overmolding should therefore be assessed as an integrated material-and-process system.
Common Applications for LSR Injection Molding
LSR injection molding is used across multiple industries.
Automotive
Examples include:
Dow specifically markets several injection-molding LSR grades for connector seals, radial seals and related automotive electrical applications.
Medical and Healthcare
Potential applications include:
Material selection and processing controls should be based on the regulatory and biocompatibility requirements of the actual device.

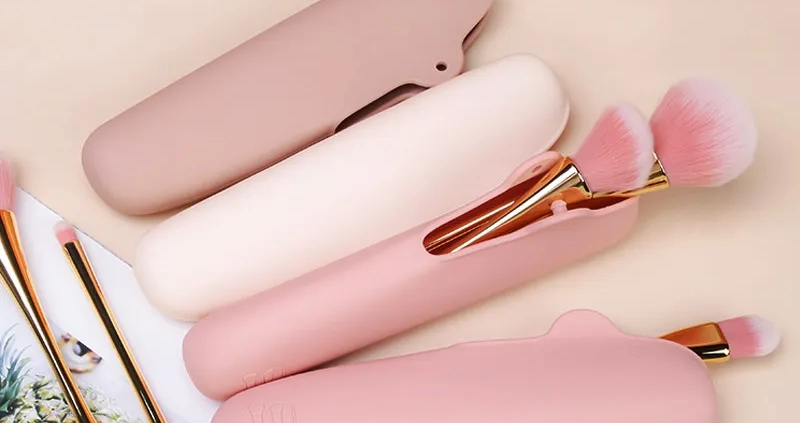

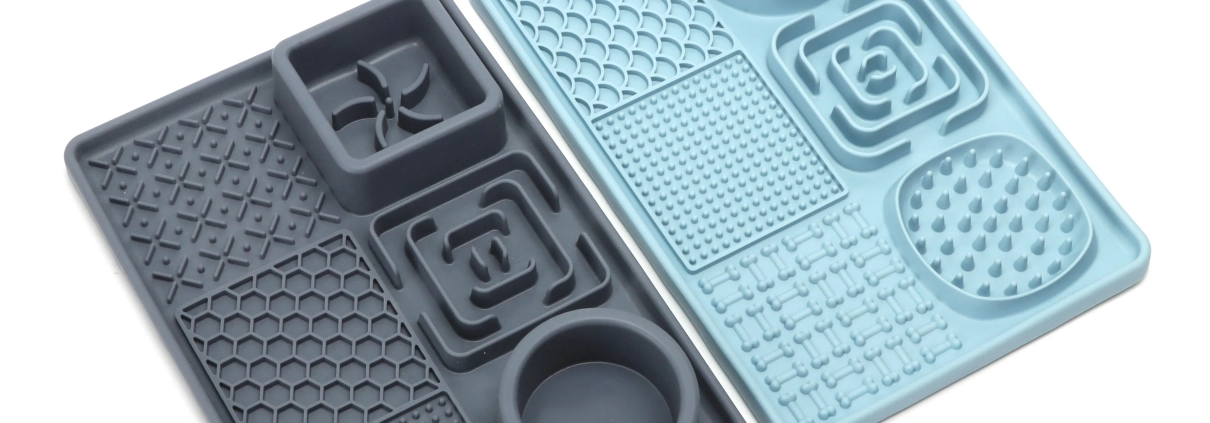

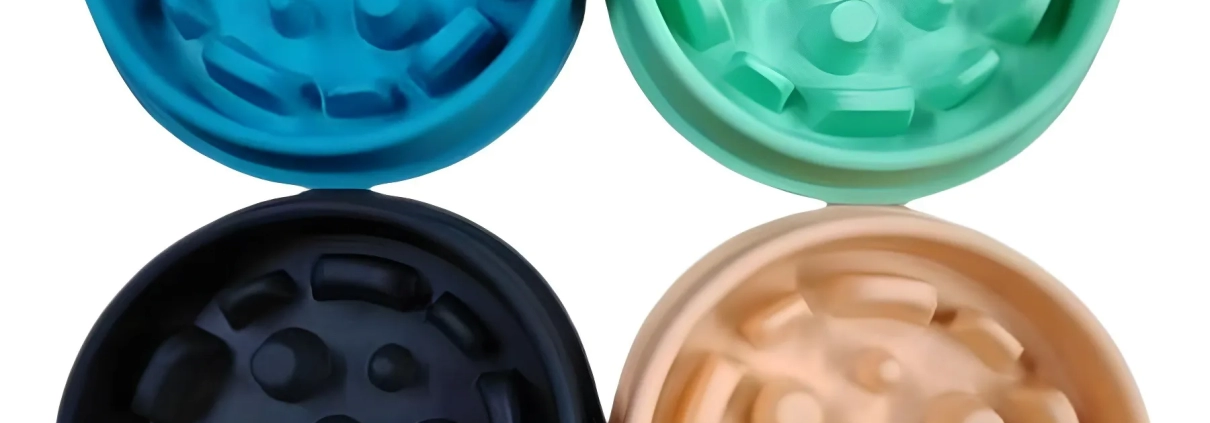

Consumer Products
LSR is also used for:
Electronics and Industrial Components
Applications may include:
What Determines LSR Injection Molding Cost?
There is no universal LSR injection molding price.
Total project cost is generally influenced by:
Engineering + Tooling + Material + Cycle Time + Production Quantity + Secondary Operations + Inspection + Packaging
1. Tooling Complexity
LSR tooling cost increases with factors such as:
A complex multi-cavity automated mold requires a different investment from a simple single-cavity development tool.
2. Number of Cavities
More cavities generally increase mold complexity but increase production output per cycle.
For high-volume programs, this can lower recurring unit manufacturing costs.
Therefore:
Tooling should be evaluated against projected annual volume.
3. LSR Material
Material cost depends on the selected formulation.
Special requirements such as:
can affect material selection and cost.
4. Part Weight
More silicone means higher recurring material consumption.
Part weight is influenced by:
Reducing unnecessary material through DFM can improve manufacturing economics.
5. Cycle Time
Machine cost is closely connected to production time.
Cycle time may increase because of:
A product that takes substantially longer to cure or remove from the tool may cost more even if it uses approximately the same amount of silicone.
6. Automation Level
LSR injection molding is particularly attractive for automated manufacturing.
Modern LSR systems can integrate material metering, injection, molding and automated demolding.
Higher automation can reduce:
But automation also requires more sophisticated tooling and equipment.
Whether that investment makes sense depends on production volume.
7. Secondary Operations
Additional processes may include:
Every added operation contributes to recurring production cost.
8. Inspection Requirements
Precision silicone components may require:
The more critical the part, the more important it becomes to define inspection requirements before quotation.
LSR Injection Molding vs Compression Molding
These processes serve different manufacturing needs.
The correct decision should be based on:
geometry + quantity + material + tolerance + automation + total manufacturing cost
rather than choosing a process only because one mold appears cheaper.
When Should You Choose LSR Injection Molding?
LSR injection molding is particularly attractive when a project requires a combination of:
Compression molding may remain preferable for some simpler, lower-volume or larger silicone products.
There is no universal “best” silicone molding process.
Common LSR Design Mistakes
Several design issues repeatedly increase project risk.
Mistake 1: Applying Plastic Tolerances Directly to Silicone
Silicone is an elastomer and must be toleranced accordingly.
Mistake 2: Ignoring Shrinkage Until Sampling
Shrinkage needs to be considered during mold design.
Mistake 3: Designing Excessive Undercuts
A flexible product may still tear during high-speed automated demolding.
Mistake 4: Putting the Parting Line Through a Critical Seal
Flash or mismatch can affect sealing performance.
Mistake 5: Making Every Dimension Critical
This increases tooling and inspection cost without necessarily improving performance.
Mistake 6: Choosing Material by Hardness Only
Hardness does not define tear strength, compression set, viscosity, adhesion or regulatory suitability.
Mistake 7: Selecting Cavity Count Based Only on Initial Tool Cost
Annual production volume should determine the manufacturing strategy.
LSR DFM Checklist
Before approving tooling, review:
Material
Geometry
Mold
Dimensions
Production
A DFM review before tooling can prevent much more expensive modifications after mold completion.
Manufacturer Insight: How NEWTOP Approaches an LSR Project
At NEWTOP, an LSR project should start with engineering evaluation rather than immediately building a mold.
A typical review considers:
What will the silicone component actually do?
Which hardness and formulation are appropriate?
Are walls, ribs, sealing features and undercuts moldable?
Which dimensions genuinely require tight control?
How should the selected material and geometry be considered in mold dimensions?
What cavity count, parting line, gating and runner system are appropriate?
Is the product intended for prototype quantities, initial market production or long-term mass production?
Which features need dimensional, visual or functional inspection?
This approach helps connect the product design with the expected manufacturing volume before production tooling is finalized.
Frequently Asked Questions About LSR Injection Molding
What does LSR stand for?
LSR stands for Liquid Silicone Rubber, a flowable silicone elastomer widely used in injection molding.
Is LSR a thermoplastic?
No.
LSR is a thermosetting elastomer. It is injected into a heated mold where it cures into a crosslinked silicone component.
What is the difference between LSR and HCR silicone?
LSR is a liquid two-component material primarily suited to automated injection molding.
HCR is a high-consistency or solid silicone rubber commonly processed through compression molding, transfer molding, extrusion and related processes.
The better option depends on the part geometry, quantity, material properties, and manufacturing strategy.
Does LSR shrink after molding?
Yes.
But there is no single shrinkage percentage applicable to every LSR. Shrinkage varies according to material formulation and processing conditions. Published supplier data confirms variation between different LSR grades.
What tolerances can LSR injection molding achieve?
Tolerance capability depends on dimensions, geometry, mold construction, material, shrinkage and measuring method.
ISO 3302-1 provides an established framework for dimensional tolerances in molded rubber products.
Critical tolerances should nevertheless be reviewed individually during DFM.
Can LSR be molded with undercuts?
Yes, selected undercuts can often be demolded because cured silicone is flexible.
However, excessive undercuts can increase tearing, deformation and demolding difficulty.
Does an LSR part need draft?
Some LSR geometries can be demolded with little draft compared with rigid plastics, but draft remains useful for reliable automated production.
The required draft depends on depth, texture, hardness and geometry.
Does LSR require post-curing?
Not always.
Requirements depend on the material, application and performance requirements. Some LSR grades are specifically designed without a required post-curing stage.
Is LSR injection molding expensive?
LSR injection molding can require sophisticated tooling and equipment, particularly for multi-cavity and cold-runner production.
However, its automation potential and production efficiency can make it economically attractive for suitable high-volume projects.
Total manufacturing cost should therefore be considered rather than tooling cost alone.
Can LSR be molded onto plastic or metal?
Yes.
LSR can be used in insert molding and overmolding applications. Specialized self-adhesive formulations are available for selected plastics and other substrates.
What files should I provide for an LSR quotation?
Ideally provide:
This allows the manufacturer to evaluate both tooling and long-term production strategy.
Start Your LSR Injection Molding Project
Successful LSR injection molding is not determined by the molding machine alone.
Material selection, DFM, mold design, shrinkage compensation, tolerance strategy, cavity count and process control must work together.
For a new LSR project, the most effective approach is to review the design before production tooling begins.
Send NEWTOP your:
Our engineering team can evaluate the design for LSR molding, identify potential manufacturing risks, recommend an appropriate tooling strategy, and prepare the project for sampling and mass production.
Send Your CAD for an LSR DFM Review →
